Triple V22
Vertical Machining Center
Triple V22

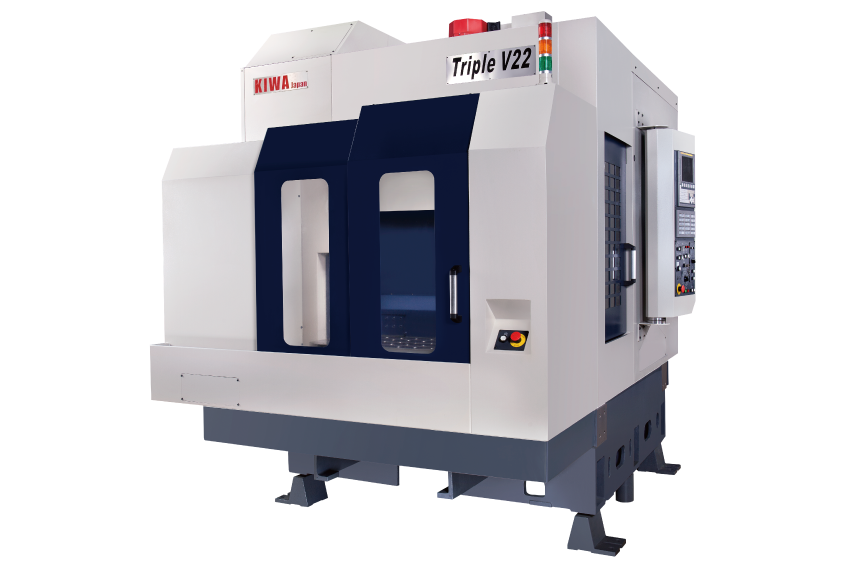

Three-axis column traverse structure with fixed table enabling easy arrangement of fixtures and rotary tables.

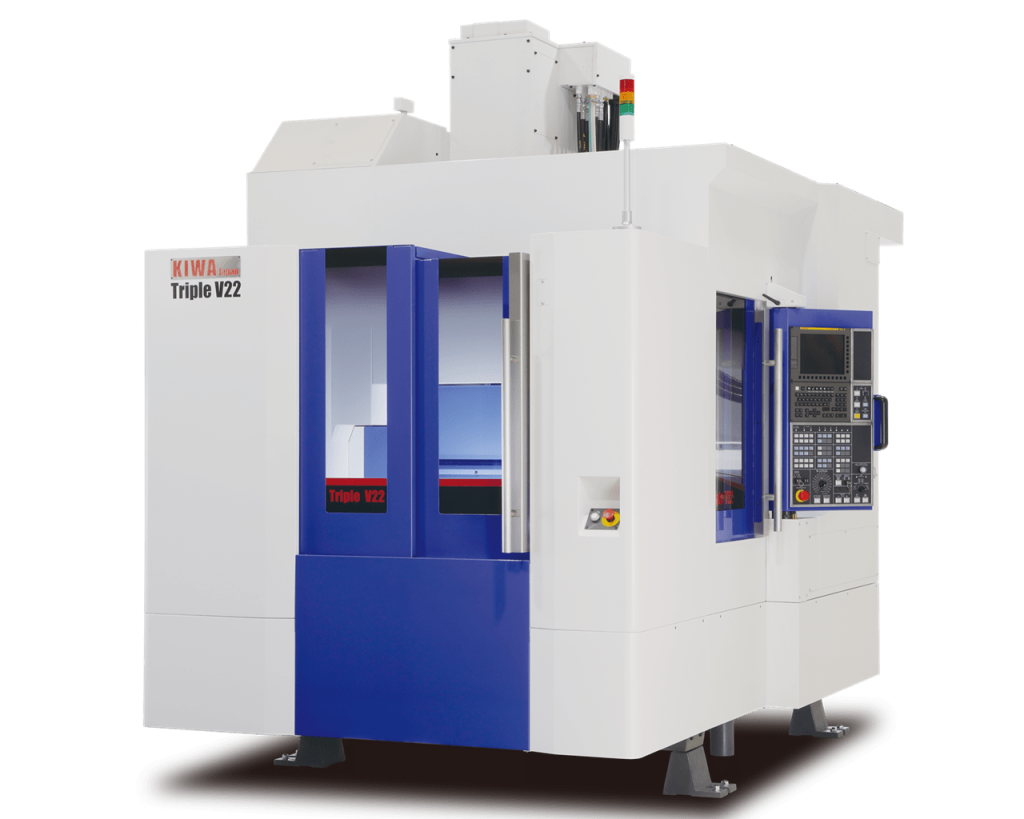

Two 820 x 410 mm tables available for APC by 180 deg. turn as option.
Three-axis column traverse structure with fixed table enabling easy arrangement of fixtures and rotary tables.
Specifications
| Type of Spindle | BT40 (OP. CAT40 / HSK-A63) |
|---|---|
| Spindle speed (min-1) | 10,000 (OP. 12,000) (OP. 15,000) |
| Number of pallets | Single / 2 |
| Pallet size (mm [inch]) | Single: 820 × 450 [32.3 x 17.7] 2APC: 820 × 410 [32.3 x 16.1] |
| Max. work piece height (mm [inch]) | 600 [23.6] |
| X, Y, Z axes (mm [inch]) | Single: 610 x 410 x 510 [24.0 x 16.1 x 20.1] 2APC: 740 x 410 x 510 [29.1 x 16.1 x 20.1] |
| Rapid feed (X/Y/Z) (mm/min. [ipm]) | 60,000 [2,362] (OP. 75,000 [2,953]) |
| Number of tools | 24 (OP. 30) |
| NC | FANUC 0i-MF Plus |
| Floor space (Excluding chip conveyor) (mm [inch]) | Single: 1,998 × 3,074 [78.7 x 121.0] 2APC: 2,116 × 3,837 [83.3 x 151.1] (with 30 Tools, width +250 [9.8]) |
*Inch expression is approximate.
[OP.] ... Option
